92MM Micro FPV Racing RC Quadcopter Frame Kit Based On SP RACING F3_EVO_Brush Flight Controller

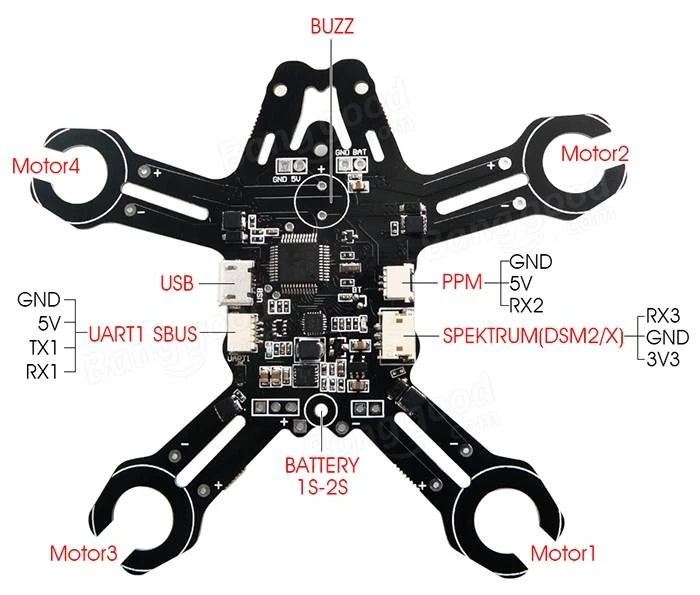

92mm F3 EVO Brush board is revised on the basis of SPRacing F3 EVO. It is a FC-frame using ARM Cortex M4 core STM32 F3 processor. Support Spektrum (DSM2/X), PPM, SBUS and other mainstream receivers. Also it is support cleanflight and betaflihgt software.

Description:

Item name:92MM Micro FPV RC Quadcopter Frame Kit

Wheelbase: 92mm

Weight: 8.5g

Flight controller: SP RACING F3_EVO_Brush

Firmware version: betaflight 3.0

Features:

1. Pefectly support 1-2S lipo, it can even bring you an extremely fast and fun flying experience with a 2S battery.

2. Support SPEKTRUM (DSM2/X), PPM, SBUS and other mainstream receiver, no need to connect the external inverter which has been pre built-in.

3. Integrated with 4 current NMOSFET, each current can reach at least 10A and each motor has free-wheeling diode

4. Come siwht the battery voltage detector and the buzzer interface. Customers can set the voltage alarm randomly.

5. Uses STM32 F303CCT6 as the main controller and MPU6500 of InvenSense Gyro.

6. Support Cleanflight and Betaflight software.

7. This can be also used as a frame.

8. With 4 LED light, has LED strip function.

,b>
Package included:

1x F3 EVO Brush Flight controller / Frame

1x Accessories Set
