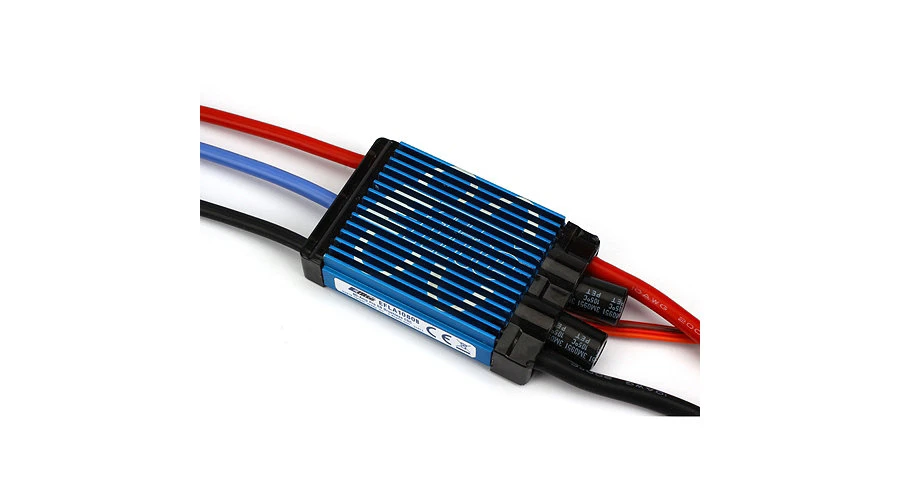

80-Amp Pro Switch-Mode BEC Brushless ESC, EC5 (V2)

Product Description

Key Features

3?6S Li-Po, 9- to 18-cell Ni-Cd/Ni-MH input voltage
5-volt Switch-Mode BEC circuit capable of 2.5-amp continuous current on any recommended input voltage
Drives up to 7 analog or 6 digital standard-sized servos, with the BEC on any recommended input voltage
Up to 80-amp continuous current with proper air flow, 100-amp peak

Overview

When performance matters in your high-current applications look no further than the E-flite? 80-Amp Pro Switch Mode ESC. This is a high-quality, efficient sensorless brushless electronic speed control with an integrated Switch-Mode BEC. It can operate without the need for a separate receiver battery to power your servos and receivers, saving you weight and complication. It is capable of up to 80 amps continuous current when using 3- to 6-series Li-Po battery packs. You can drive up to 7 analog or 6 digital standard-sized servos with the BEC on any recommended input voltage. Featuring an exposed, finned heat sink aluminum case with lightweight plastic endcaps, safe power-arming along with advanced programmable features such as low voltage cutoff, braking, timing, throttle input range, and more, the E-flite 80-Amp Pro Switch Mode ESC is truly a ?pro series? electronic speed control.

This product is not intended for use by children under 14 years of age without direct adult supervision.

Specs

Type: Brushless

Amperage: 60 & Up

Input Connector Types: EC5

Continuous Maximum Current: 75 – 100A

Forward: Yes

Brake: Yes

Time Delay Brake: Yes

Output Connector Types: 4mm Gold Bullet, 12AWG

Momentary Peak Current: 100A

Length: 3.0 in (77mm)

Width: 1.6 in (41mm)

Height: 0.62 in (15.5mm)

Weight: 3.75 oz (106 g)

BEC Voltage: 5.5V Switch-mode

Overload Protection: Yes

Cells w/BEC: 9-18 cells NiMH, 3-6S LiPo

Auto Cutoff: Yes
